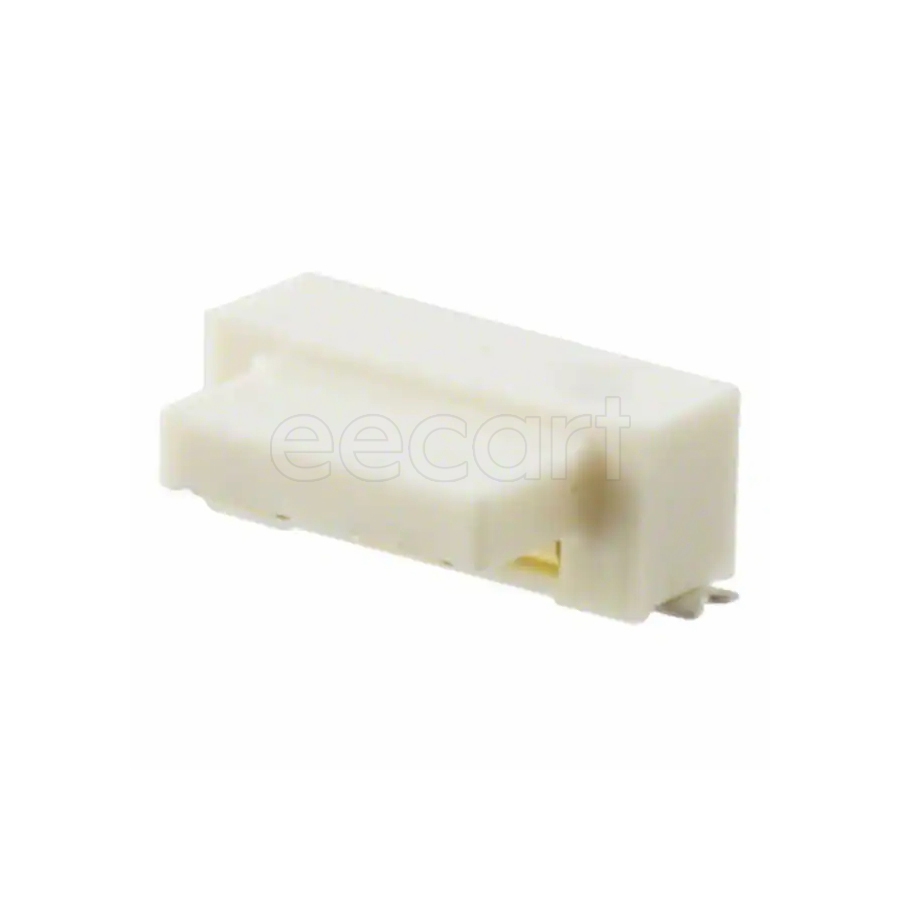

109159002101116
Manufacturer:
Kyocera AVX
Mfr.Part #:
109159002101116
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:2 Number of Rows:1 Pitch:3 mm
| Parameter | Value |
|---|---|
| Length | 8.95 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 2 |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 5.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Beryllium Copper, Phosphor Bronze |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94HB |
| Orientation | Right Angle |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | White |
| Mounting Angle | Horizontal |
Stock: 1729
Distributors
pcbx
pcbxUnit Price$0.48218
Ext.Price$0.48218
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.48218 | $0.48218 |
| 10 | $0.41122 | $4.11220 |
| 25 | $0.38959 | $9.73975 |
| 50 | $0.36909 | $18.45450 |
| 100 | $0.34967 | $34.96700 |
| 300 | $0.33032 | $99.09600 |
| 500 | $0.31205 | $156.02500 |
| 1000 | $0.29327 | $293.27000 |
| 3000 | $0.27562 | $826.86000 |
| 5000 | $0.25904 | $1295.20000 |
